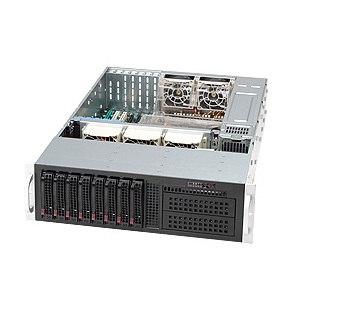

| SYS-6037R-72RFT |
- SuperServer 6037R-72RFT (Black)
|
| |
|
Super X9DRH-7TF |
| |
|
| CPU |
- Intel® Xeon® processor E5-2600
- Dual Socket R (LGA 2011)
|
| Cache |
|
| System Bus |
|
| |
|
| Memory Capacity |
- 16x 240-pin DDR3 DIMM sockets
- Supports up to 512 GB DDR3 ECC Registered memory (RDIMM)
- Supports up to 128 GB DDR3 ECC Un-Buffered memory (UDIMM)
|
| Memory Type |
- 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
|
| DIMM Sizes |
- 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| |
|
| Chipset |
|
| SATA |
- SATA 2.0 3Gbps with RAID 0, 1, 5, 10
- SATA 3.0 6Gbps with RAID 0, 1
|
| SAS |
- SAS2 from LSI 2208
- RAID 0, 1, 5, 6, 10, 50, 60 support
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- Nuvoton WPCM450 BMC
|
| Network Controllers |
- Intel® X540 Dual Port 10GBase-T
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- 1x Realtek RTL8201N PHY (dedicated IPMI)
|
| Graphics |
|
| Super I/O |
- Nuvoton W83527HG (optional)
|
| |
|
| Serial ATA |
- 2x SATA 3.0 ports (6Gbps)
- 8x SATA 2.0 ports (3Gbps)
|
| SAS |
|
| LAN |
- 2x RJ45 10GbE LAN ports
- 1x RJ45 Dedicated IPMI LAN port
|
| USB |
- 7x USB 2.0 ports total
(4x rear + 2x via header + 1x Type A)
|
| VGA |
|
| Serial Port / Header |
- 2x Fast UART 16550 serial COM port (1 rear & 1 header)
|
|
 |
|
|
| Form Factor |
|
| Model |
|
| |
|
| Width |
|
| Height |
|
| Depth |
|
| Weight |
- Gross: 74.8lbs (34kg) / Net: 48lbs (21.8kg)
|
| Available Colors |
|
| |
|
| Buttons |
- Power On/Off button
- System Reset button
|
| LEDs |
- Power status LED
- Hard drive activity LED
- 2x Network activity LEDs
- System Overheat LED
- Power fail LED
|
| |
|
| PCI-Express |
- 6x PCI-E 3.0 x8
- 1x PCI-E 3.0 x16
|
| |
|
| Hot-swap |
- 8x 3.5" Hot-swap SAS/SATA HDD trays
- SAS or enterprise SATA HDD only recommended
|
| Peripheral Bays |
- 2x 5.25" Peripheral Drive Bay
|
| |
|
| 1x SAS2 / SATA backplane |
| |
|
| Fans |
- 3x 8cm 7K RPM, Middle fans
- 2x 8cm 6.7K RPM, Rear Exhaust fan
|
| |
|
| 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C |
| AC Input |
- 100-240 V, 50-60 Hz, 11-4.5 Amp
|
| DC Output |
- 4 Amp @ +5V standby
- 75 Amp @ +12V
|
| With Power Distributor |
- +5V: 45 Amp
- +3.3V: 24 Amp
- -12V: 0.6 Amp
|
| Certification |
80PLUS
Platinum Certified |
| |
|
| BIOS Type |
- 128Mb SPI Flash EEPROM with AMI BIOS
|
| BIOS Features |
- Plug and Play (PnP)
- APM 1.2
- PCI 2.2
- ACPI 1.0 / 2.0
- USB Keyboard support
- SMBIOS 2.3
- UEFI
|
| |
|
| RoHS |
|
| Environmental Spec. |
- Operating Temperature:
10°C to 35°C (50°F to 95°F)
- Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
