SYS-6027R-TDARF

Есть вопрос по товару?
Цена: 106640 руб
Наличие:ПОД ЗАКАЗ
Артикул: SYS-6027R-TDARF
Производитель:SuperMicro
Доставка: Бесплатно по Москве!

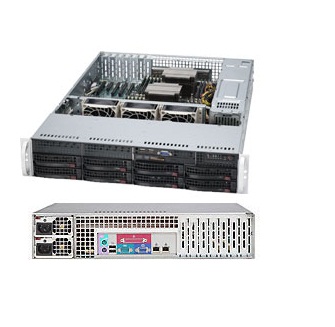

Серверная платформа Supermicro SYS-6027R-TDARF


Product SKUs
SYS-6027R-TDARF
  • SuperServer 6027R-TDARF (Black)

Motherboard

Super X9DRD-iF

Processor/Cache
CPU
  • Dual Socket R (LGA 2011)
  • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
    Intel® Xeon® processor E5-2600
    60W - 135W
Cache
  • Up to 20MB
System Bus
  • QPI up to 8 GT/s

System Memory
Memory Capacity
  • 8x 240-pin DDR3 DIMM sockets
  • Supports up to 256 GB DDR3 ECC Registered memory (RDIMM)
  • Supports up to 64 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type
  • 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage
  • 1.5 V, 1.35 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C602 Chipset
SATA
  • Via Cable for SATA controller
  • SATA 2.0 (3Gbps) & 3.0 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Nuvoton WPCM450 BMC
Network Controllers
  • Intel® i350 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201F PHY (dedicated IPMI)
Graphics
  • Matrox G200eW

Input / Output
Serial ATA
  • 2x SATA 3.0 ports (6Gbps)
  • 8x SATA 2.0 ports (3Gbps)
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 9x USB 2.0 ports total
    (4x rear + 4x via header + 1x Type A)
VGA
  • 1x VGA port
Serial Port / Header
  • 2x Fast UART 16550 ports (rear/header)
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-825TQ-R740LPB

Dimensions
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 25.5" (648mm)
Gross Weight
  • 52 lbs (23.6kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED
  • Power fail LED

Expansion Slots
PCI-Express
  • 1x PCI-E 3.0 x16 slot
  • 4x PCI-E 3.0 x8 slots

Drive Bays
Hot-swap
  • 8x Hot-swap 3.5" SATA HDD trays

Peripheral Drives
DVD-ROM
  • Slim DVD-ROM drive (optional)

Backplane
1x 2U SAS/SATA backplane

System Cooling
Fans
  • 3x 8cm 7k RPM middle fans

Power Supply with Power Distributor
740W (1+1) Redundant high-efficiency power supply with PMBus
AC Input
  • 100-240 V, 50-60 Hz, 9-3.5 Amp
DC Output
  •   4 Amp @ +5V standby
  •   61.7 Amp @ +12V
With Power Distributor
  • +5V: 30 Amp
  • +3.3V: 24 Amp
  • -12V: 0.6 Amp
Certification 80 PLUS Platinum
  80 PLUS Platinum
  (Cert. in progress)



System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
       0°C to 47°C (32°F to 116.6°F)
       with certain configurations /
       workload environments
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
