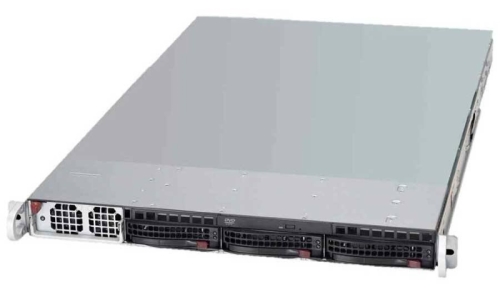

Supermicro 1U, 1400W, LGA2011-R3, Intel®C612, 8xDDR4, 3xHDD 3.5", 2xGbE, IPMI
Технические характеристики
| |
 |
| CPU |
- Intel® Xeon® processor E5-2600/1600 v3 family (up to 145W TDP **)
- Single Socket R3 (LGA 2011)
|
| Core / Cache |
- Up to 18 Cores / Up to 45MB Cache
|
| Note |
** Motherboard supports this maximum TDP. Please verify your system can thermally support |
| |
|
| Memory Capacity |
- 8x 288-pin DDR4 DIMM slots
- Up to 512GB DDR4 ECC LRDIMM
- Up to 256GB DDR4 ECC RDIMM
|
| Memory Type |
- 2133/1866/1600/1333MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM/LRDIMM) / 284-pin gold-plated DIMMs
|
| DIMM Sizes |
- RDIMM: 32GB, 16GB, 8GB, 4GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| |
|
| Chipset |
|
| SATA |
- SATA3 (6Gbps) via C612 controller
- RAID 0, 1, 5, 10 support
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
|
| Network Controllers |
- Intel® i350 Dual Port Gigabit Ethernet
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
|
| Graphics |
|
| |
|
| SATA |
|
| LAN |
- 2x RJ45 Gigabit Ethernet LAN ports
- 1x RJ45 Dedicated IPMI LAN port
|
| USB |
|
| Video |
|
| Serial Port |
|
| DOM |
- 2x DOM (Disk on Module) power connectors
|
| |
|
| BIOS Type |
- 128Mb SPI Flash EEPROM with AMI BIOS
|
| BIOS Features |
- Plug and Play (PnP)
- APM 1.2
- DMI 2.3
- PCI 2.3
- ACPI 1.0 / 2.0 / 3.0 / 4.0
- USB Keyboard support
- Hardware BIOS Virus protection
- SMBIOS 2.7.1
- UEFI 2.3.1
- RTC (Real Time Clock) Wakeup
|
|
 |
|
|
| Form Factor |
|
| Model |
|
| |
|
| Height |
|
| Width |
|
| Depth |
|
| Weight |
- Net Weight: 27 lbs (12.25 kg)
- Gross Weight: 35.5 lbs (16.10 kg)
|
| Available Color |
|
| |
|
| Buttons |
- Power On/Off button
- System Reset button
|
| LEDs |
- Power LED
- Hard drive activity LED
- 2x Network activity LEDs
- System Overheat LED / Fan fail LED /
UID LED
|
| |
|
| PCI-Express |
|
| |
|
| Hot-swap |
- 3x 3.5" Hot-swap drive bays
|
|
| |
|
| Fans |
- 8x counter-rotating fans with optimal fan speed control
|
| |
|
| 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2 |
| AC Voltage |
- 1200W: 100-140 V, 14.7-10.5A, 50-60 Hz
- 1400W: 180-240 V, 10.5-8.0A, 50-60 Hz
|
| +5V standby |
|
| +12V |
- 100 Amp/115 Vac
- 117 Amp/230 Vac
|
| With Power Distributor |
|
| Certification |
Platinum Certified |
| |
|
| CPU |
- Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages.
- CPU Core 5-Phase-switching voltage regulator
|
| FAN |
- Total of eight 4-pin PWM fans
- 8x fans with tachometer monitoring
- Status monitor for speed control
- Status monitor for on/off control
- Low noise fan speed control
|
| Temperature |
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Control for 8x Fan Connectors
- PSU I2C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- PECI
|
| LED |
- Power Fail / Overheat LED
- Suspend-state Indicator LED
- UID LED
|
| Other Features |
|
| |
|
| RoHS |
|
| Environmental Spec. |
- Operating Temperature:
10°C to 35°C (50°F to 95°F)
- Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
