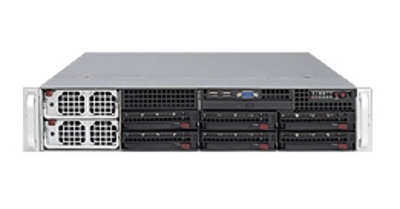

Серверная платформа SM AS-2041M-32R+B, 2U, 4xOpteron,AMD8xxx, upto 128 GB DDR2 ECC, 6xSAS/SATA, 2x1200W
| |
 |
| CPU |
- Quad 1207-pin Socket F
- Supports up to four Six-Core AMD Opteron™ 8000 Series (Socket F) processors
- HT3.0 Link support
|
| Chipset |
- nVidia MCP55 Pro
- IO 55
- NEC uPD720400
|
| |
|
| Memory Capacity |
- Thirty-two 240-pin DIMM sockets
- Supports up to 256 GB DDR2 800/667/533/400 MHz memory
- Single or Dual (recommended) channel memory support
- For Quad CPUs: Recommended that memory be populated equally in adjacent memory banks
|
| Memory Type |
- DDR2 800/667/533/400MHz* Reg. ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
|
| DIMM Sizes |
- 256MB, 512MB, 1GB, 2GB, 4GB, 8GB **
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| |
|
| SAS |
- LSI SAS 1068E **
- RAID 0, 1, 10 support
- (Optional: AOC-IButton68) RAID 5 support
|
| SATA |
- nVidia MCP55 Pro SATA2 3.0Gbps Controller
- 6 SATA2 Ports
- nVidia RAID 2.0
- SATA RAID 0, 1, 0+1, 5 JBOD Support
|
| IPMI |
|
| Network Controllers |
- Intel® 82546GB Dual Port Gigabit Ethernet Controller
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
|
| Super I/O |
|
| VGA |
- ATI ES1000 Graphics Controller
|
| |
|
| SATA |
|
| IDE |
- Single EIDE channel support up to two UDMA IDE devices
- Supports UDMA Mode 5
- Supports PIO Mode 4
- Supports ATA 100 / 133
|
| Floppy |
- 1 Floppy port; 1.44 MB support
|
| LAN |
|
| USB |
- Up to 4 USB Ports 2.0/1.1 Compliant
- 2 Rear Ports
- 2 Internal Headers
|
| Keyboard / Mouse |
- PS/2 keyboard and mouse ports
|
| Serial Ports |
- 1 Fast UART 16550 serial port
- 1 Header
|
| VGA |
|
| |
|
| BIOS Type |
- 8Mb Flash EEPROM with AMI® BIOS
- SST 49LF080A BIOS Chip
|
| BIOS Features |
- Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 2.0/1.0
- USB Keyboard Support
- SMBIOS 2.3
|
|
 |
|
|
| Form Factor |
|
| Model |
|
| |
|
| Height |
3.5" (89mm) |
| Width |
17.2" (437mm) |
| Depth |
27.75" (708mm) |
| Gross Weight |
69 lbs (31.3kg) |
| Available Colors |
Black |
| |
|
| Buttons |
• Power On/Off button
• System Reset button |
| LEDs |
• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat / Fan Fail LED
• Power fail LED |
| Ports |
2x USB Ports + DB9 COM Port |
| |
|
| PCI-Express |
- 2 x16 PCI-e Slots
- 1 x8 PCI-e Slot
- 1 x4 PCI-e Slot (Using x8 Slot)
|
| PCI-X |
- 1 64-bit 133 MHz PCI-X (3.3V) slot
- OR 1 SIMLC Slot
|
| |
|
| Hot-swap |
- 6 x 3.5" SATA Hot-swap drive trays
- Supports up to 6x SATA hard drives
|
| |
|
| DVD-ROM |
Slim 8x DVD, 24x CD, DVD-ROM Drive |
| Floppy |
Slim 1.44MB Floppy Drive (Optional) |
| |
|
| 1x 2U SAS / SATA backplane with Enclosure Management (SGPIO) |
| |
|
| Fans |
|
| Shroud |
|
| |
|
| 1200W (1 + 1) Redundant high-efficiency power supply w/ PFC |
| 1200W |
| +5V standby |
|
| +12V |
|
| 900W |
| +5V standby |
|
| +12V |
|
| |
|
| CPU |
- Monitors CPU Core Voltages, +3.3V, +5V, +12V, +5V Standby, VBAT.
- CPU 5-Phase-switching voltage reulator
|
| FAN |
- Total up to 9-fan status tachometer monitoring
- Up to nine 3-pin fan headers
- Status monitor for speed control
- Support 3-pin fans with fan-speed control
- Low noise fan speed control
|
| Temperature |
- Monitoring for CPU and chassis environment
- CPU Thermal Trip Support
- PC Temperature Sensing Logic
|
| LED |
- CPU / System Overheat LED
- +5V Standby Alert LED
|
| Other Features |
- Chassis Intrusion Detection
- Chassis Intrusion Header
|
| |
|
| RoHS |
|
| Environmental Spec. |
- Operating Temperature:
10°C to 35°C (50°F to 95°F)
- Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
