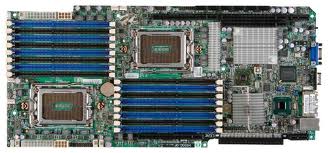

| MBD-H8DGG-QF |
- H8DGG-QF (Standard Retail Pack)
|
| |
|
| Form Factor |
|
| Dimensions |
- 7.74" x 16.64" (19.7cm x 42.3cm)
|
| |
|
| CPU |
- Dual 1944-pin Socket G34
- Supports up to two 16/12/8-Core ready AMD Opteron™ 6000 Series processors
- HT3.0 Link support
|
| Chipset |
- Dual AMD chipset SR5690/SP5100
|
| |
|
| Memory Capacity |
- 16 DIMM sockets
- Supports up to 512GB Registered ECC or 128GB Unbuffered ECC/non-ECC DDR3 1600/1333/1066 SDRAM in 16 DIMMs
- Quad channel memory bus
- For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
- See Detailed Memory Support Matrix
|
| Memory Type |
- DDR3 1600/1333/1066 MHz Registered ECC or unbuffered ECC / non-ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
|
| DIMM Sizes |
- 1GB, 2GB, 4GB, 8GB, 16GB, 32GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| |
|
| SATA |
- AMD SP5100 (RAID 0, 1, 10)
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM over LAN support
- Winbond® WPCM450 BMC
|
| Network Controllers |
- Intel® 82576 controller, Dual-Port Gigabit Ethernet
- 10/100/1000BASE-T support
|
| VGA |
|
| Super I/O |
|
| |
|
| SATA |
|
| LAN |
- 2 RJ45 LAN ports
- 1 RJ45 Dedicated LAN supports IPMI
|
| USB |
- 4x USB 2.0 ports
- 2x Rear and 1x header(2x ports)
|
| VGA |
|
| Serial Ports |
- 1x Fast UART 16550 serial port
- 1x serial port header
|
| |
|
| 1U |
- 3/2 PCI-E 2.0 x16/x8 in x16
|
|
 |
|
|
| 1U Chassis |
|
| |
|
| BIOS Type |
- 16Mb SPI Flash ROM with AMI® BIOS
|
| BIOS Features |
- Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 2.0
- USB Keyboard Support
- SMBIOS 2.3
|
| |
|
| Software |
- IPMI (Intelligent Platform Management Interface) 2.0
- Super
 Doctor III
|
| Power Configurations |
- ACPI Power Management
- Wake-On-LAN (WOL) header
- Keyboard Wakeup from Soft-Off
- Power-on mode control for AC power loss recovery
|
| |
|
| CPU |
- Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, VBAT, HT, memory, chipset
- CPU switching voltage regulator
|
| FAN |
- Up to 8-fan status tachometer monitoring
- Up to eight 4-pin fan headers
- Status monitor for speed control
- 3-pin fan support (w/o speed control)
- Low noise fan speed control
(4-pin fan only)
- Pulse Width Modulated (PWM) fan connectors
|
| Temperature |
- Monitoring for CPU and chassis environment
- CPU Thermal Trip Support
- Thermal control for 8x Fan connectors
- I2C Temperature Sensing Logic
|
| LED |
- CPU / System Overheat LED
- +5V Standby Alert LED
|
| Other Features |
- Chassis Intrusion Detection
- Chassis Intrusion Header
|
| |
|
| RoHS |
- RoHS Compliant 6/6, Pb Free
|
| Environmental Specifications |
- Operating Temperature:
10°C to 35°C (50°F to 95°F)
- Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
| |
|
| • Please see our OS Compatibility Chart |
| |
|
| FCC |
- Passed to meet FCC standard requirement
|
|
