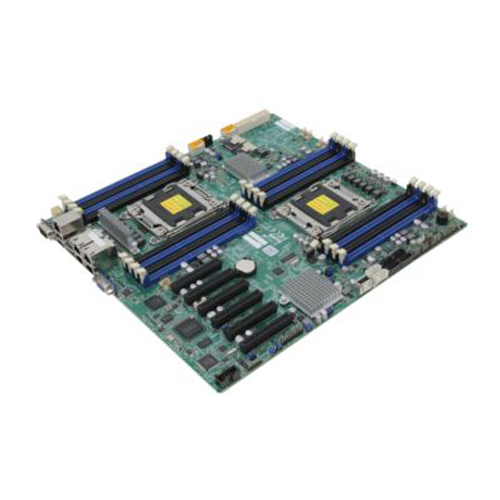

| MBD-X9DRD-7LN4F -O |
- X9DRD-7LN4F (Standard Retail Pack)
|
| MBD-X9DRD-7LN4F -B |
|
| |
|
| Form Factor |
|
| Dimensions |
- 12" x 13" (30.5cm x 33.0cm)
|
| |
|
| CPU |
- Intel® Xeon® processor E5-2600 (up to 135W TDP **)
- Dual Socket R (LGA 2011)
|
| Cache |
|
| System Bus |
|
| |
** Motherboard supports this maximum TDP. Please verify your system can thermally support. |
| |
|
| Memory Capacity |
- 16x 240-pin DDR3 DIMM sockets
- Supports up to 512 GB DDR3 ECC Registered memory (RDIMM)
- Supports up to 128 GB DDR3 ECC/non-ECC Un-Buffered memory (UDIMM)
|
| Memory Type |
- 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
- Support ECC and non-ECC UDIMMs
|
| DIMM Sizes |
- 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| |
|
| Chipset |
|
| SATA |
- SATA 2.0 3Gbps with RAID 0, 1, 5, 10
SATA 3.0 6Gbps with RAID 0, 1, 5, 10
|
| SAS |
- SAS2 (6Gbps) via LSI 2308
- SW RAID 0, 1, 10 support
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- Nuvoton WPCM450 BMC
|
| Network Controllers |
- Intel® i350 Quad Port Gigabit Ethernet
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- 1x Realtek RTL8201N PHY (dedicated IPMI)
|
| Video |
|
| |
|
| SATA |
- 2x SATA 3.0 ports (6Gbps)
- 4x SATA 2.0 ports (3Gbps)
|
| SAS |
|
| LAN |
- 4x RJ45 Gigabit Ethernet LAN ports
- 1x RJ45 Dedicated IPMI LAN port
|
| USB |
- 9x USB 2.0 ports total
(4x rear + 4x via header + 1x Type A)
|
| Video |
|
| Serial Port / Header |
- 1x Fast UART 16550 port / 1 Header
|
| DOM |
- 1 DOM (Disk on Module) power connector
|
|
 |
|
|
| 1U Chassis |
- CSE-113TQ-R700CB
- CSE-815TQ-600CB
|
| 2U Chassis |
- CSE-825TQ-600LPB
- CSE-825TQ-R740LPB
- CSE-826BA-R1K28LPB
- CSE-826BE16-R1K28LPB
- CSE-826BE16-R920LPB
- CSE-826BE26-R1K28LPB
- CSE-826BE26-R920LPB
|
| 3U Chassis |
- CSE-835TQ-R920B
- CSE-836BE16-R920B
|
| Tower / 4U Rackmount |
- CSE-846BA-R1K28B
- CSE-846BE16-R1K28B
- CSE-846BE26-R1K28B
- CSE-847A-R1400B
- CSE-847A-R1K28LPB
- CSE-847E16-R1400B
- CSE-847E16-R1K28LPB
- CSE-847E26-R1400B
- CSE-847E26-R1K28LPB
|
| Important Chassis Notes |
- To support the new generation Intel® Xeon® processor-based motherboards, Revision M chassis is recommended. Please talk to your sales representative for details.
- Please use optional I/O shield MCP-260-00041-0N in Supermicro 1U chassis
|
| |
|
| PCI-Express |
- 6 (x8) PCI-E 3.0 slots
(Both CPUs need to be installed for full access to PCI-E slots. See manual for details.)
|
| |
|
| BIOS Type |
- 128Mb SPI Flash EEPROM with AMI BIOS
|
| BIOS Features |
- Plug and Play (PnP)
- APM 1.2
- DMI 2.3
- PCI 2.3
- ACPI 1.0 / 2.0 / 3.0 / 4.0
- BIOS rescue hot keys
- USB Keyboard support
- SMBIOS 2.7.1
- UEFI
|
| |
|
| Software |
- SuperDoctor® III
- Watch Dog
- NMI
- IPMI 1.5 / 2.0
|
| Power Configurations |
- ACPI / APM Power Management
- CPU Fan auto-off in sleep mode
- Power-on mode for AC power recovery
|
| |
|
| Voltage |
- Monitors for CPU Cores, +1.1V, +1.5V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
- 5+1 Phase-switching voltage regulator
|
| FAN |
- 8x 4-pin fan headers
- 8x fans with tachometer monitoring
- Status monitor for speed control
- Status monitor for on/off control
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
|
| Temperature |
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- I2C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- PECI
|
| LED |
- CPU / System Overheat LED
- Suspend static indicator LED
- UID/Remote UID
|
| Other Features |
- Chassis intrusion detection
- Chassis intrusion header
- SDDC Support
- RoHS
|
|
